Nitrogen Use Efficiency, Nitrogen Fertilizers, NUE, Nitrogen and the EnvironmentHand-Held GreenSeeker Sensors
Trimble Agriculture (Greenseeker order link, Goto "Product")
Trimble Greenseeker crop sensor
How does the GreenSeeker Technology Work.... How do I get Started?
OSU Pocket SensorOrigins of the Pocket Sensor

HISTORY (at bottom)
Review of the GreenSeeker Sensor
Hand-Held GreenSeeker Sensors Adapted to Deliver Nitrogen Fertilizer Rate Recommendations For Crop Consultants
Index Sensors (more pictures)

Hand Held Sensors
2017, Crop sensors sharpen nitrogen management for wheat in Pakistan, CIMMYT
Trimble GreenSeeker handheld sensor  Bill Gates and Carlos Slim, Greenseeker NDVI sensor, Trimble Bill Gates and Carlos Slim inspect the New Greenseeker sensors at CIMMYT

Farmworks, retailer of Greenseeker Order the GreenSeeker Hand Held Sensor via "Farm Works"


Field results testing Greenseeker and Greenseeker handheld crop sensors, Cali Colombia, February 2013

OSU Pocket SensorOrigins of the Pocket Sensor





GreenSeeker Algorithm Files and Documents

CIMMYT Use of GreenSeeker  Part A: Concepts and Case Studies
CIMMYT Use of GreenSeeker  Part B: User Guide
Colorado State University evaluation of 2 NDVI sensors
CIAT
Comparison of several Greenseeker Sensors, Cali, Colombia, February 2013.

History of the GreenSeeker Sensor (Rutto and Arnall)

Hand Held GreenSeeker Sensors


GreenSeeker Handheld Sensor Manual (from NTech Industries)

GreenSeeker Handheld PPT presentation

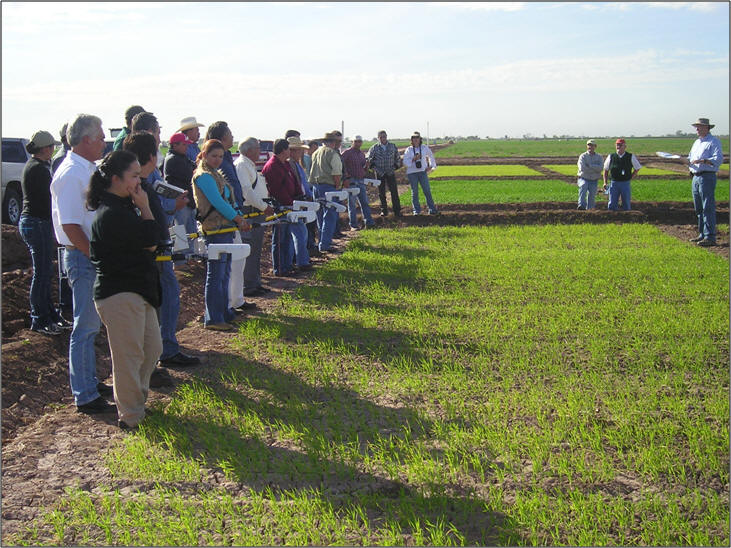

GreenSeeker training, Ciudad Obregon


GreenSeeker Sensor in Sorghum

New 4-Band Active Sensor for combined NDVI and moisture stress detection

Influence of Residue on NDVI in wheat


Optical NDVI Pocket Sensor

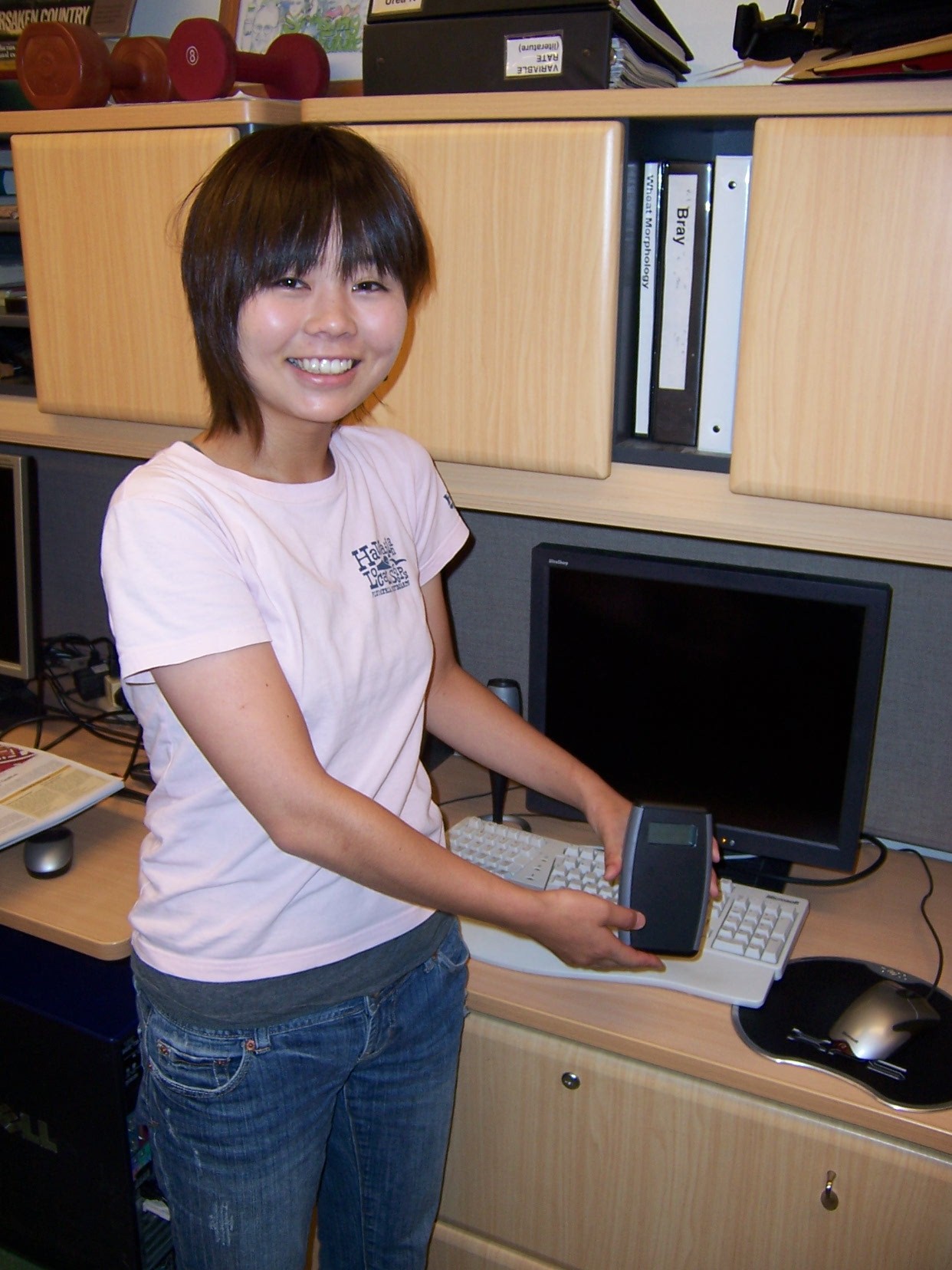

Yumiko Kanke demonstrates the new Optical NDVI Pocket Sensor developed at Oklahoma State University

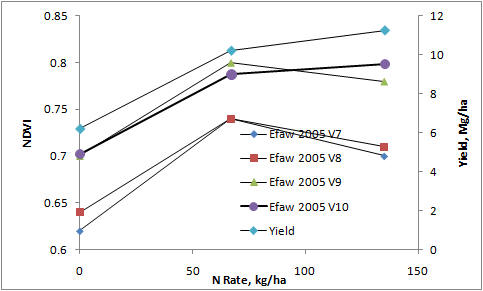

GreenSeeker NDVI readings collected at V7, V8, V9, and V10 growth stages in corn, and resultant grain yield (blue diamond)

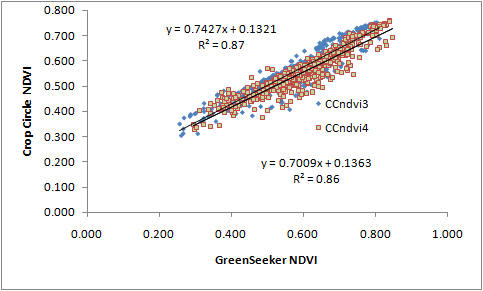

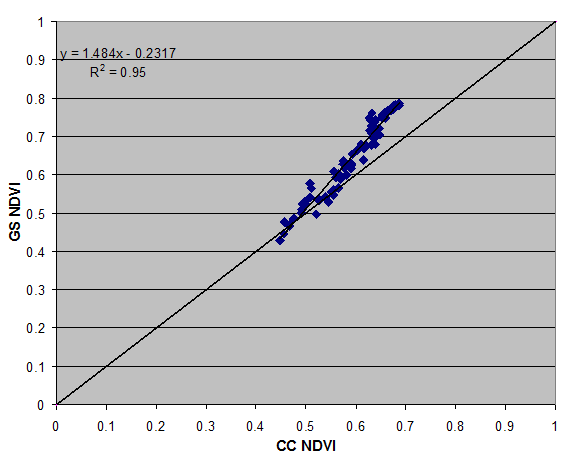

GreenSeeker versus Crop Circle, Missouri
2007, reenSeeker versus CropCircle Measurements, Missouri (Hackman, Sandner, Gebhardt, Riedel)
Comparison of GreenSeeker and CropCircle Sensors (follow this link)

Sorghum, KSU comparison of GreenSeeker versus CropCircle
Work conducted by Drew Tucker, Kansas State University shows the expanded range of the GreenSeeker sensor in Sorghum when compared to the CropCircle

GreenSeeker versus CropCircle for wet and dry biomass prediction (follow this link)

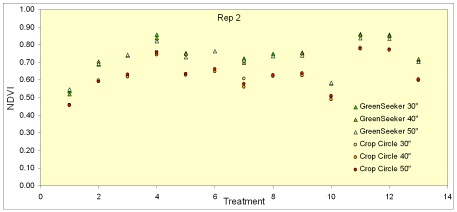

Comparison of GreenSeeker and Crop Circle Sensors


Hand Held GreenSeeker Sensors
1. History of Optical Sensing at Oklahoma State
2. Increasing NUE with Precision Agriculture
3. Hand-held GreenSeeker Sensors Commercially available
4. Alternative Uses of the Hand-Held Sensor
5. Analysis of Wet vs Dry Soil Readings
6. Dirty Lenses from soil and fertilizer.  How does this affect the Sensor?

7. CIMMYT Hand_Held Sensor Project, Erna Lukina, 1999

Patents for NUE Algorithm



GreenSeeker Hand Held NDVI sensor for improved nitrogen use efficiencyDoes the GreenSeeker Sensor work when the Field of View is Compromised, Dirty lenses on the GreenSeeker?

Day versus Night Readings?

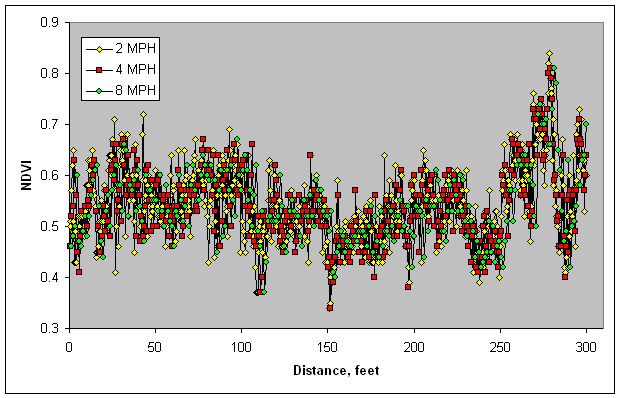

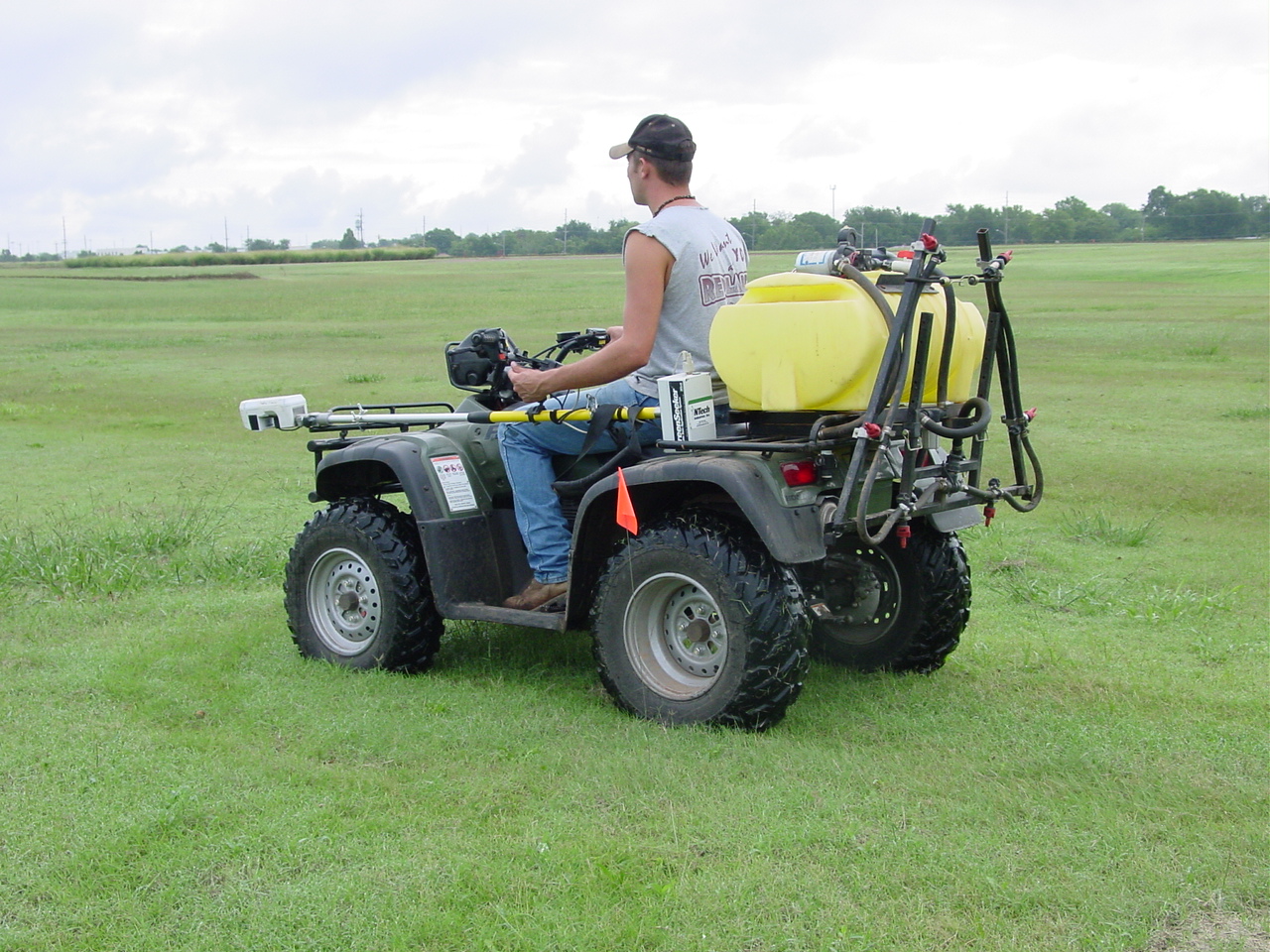

Effect of ground speed on sensor readings collected over 300 feet (bermudagrass pasture) with a range from 0.3 to 0.83 in NDVI (August, 2005, Efaw Experiment Station).  As is noted, a higher frequency of data is collected at 2 MPH, but the trends are the same (2, 4, and 8 MPH)

N-Tech Industries, Inc. - Ukiah, CA 95482 - 1-888-728-2436

Fertilizer Nitrogen Rate Calculator on-board IPAQ, Nitrogen Use Efficiency, Future of variable rate technologynitrogen sensors, nitrogen use efficiency, nitrogen managementHand-held GreenSeeker Sensors have now been adapted to include an EXCEL program whereby FIELD SCALE fertilizer N rates can be determined by Crop Consultants.  This program is available in Spanish and English and is being tested in Mexico, Ecuador, and Oklahoma.

Current programs have been adapted for Winter Wheat and Spring Wheat and will soon be available for corn and bermudagrass pasture.

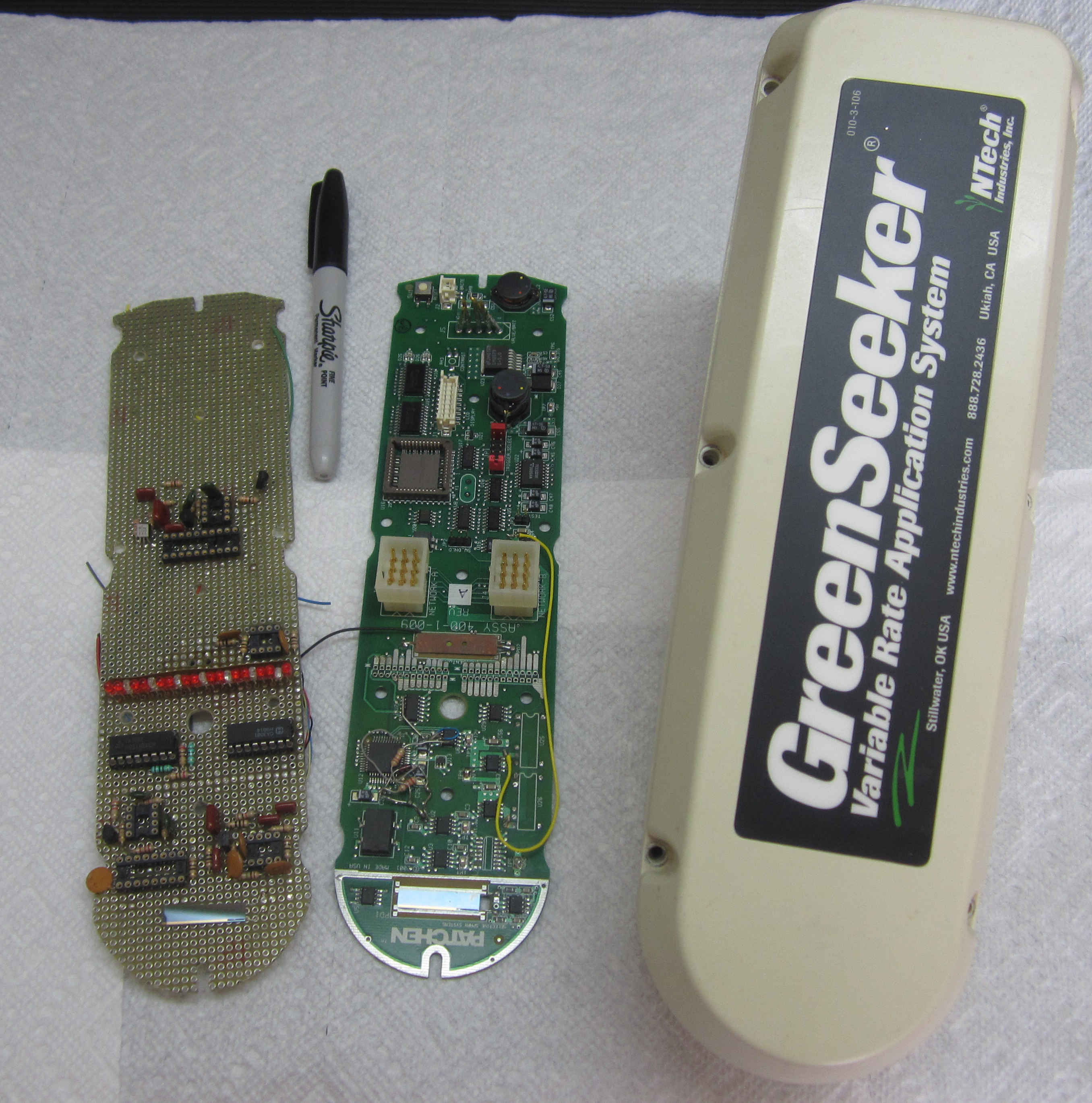

Greenseeker evolution
GreenSeeker Evolution, electronics
nitrogen sensors, nitrogen use efficiency, nitrogen management

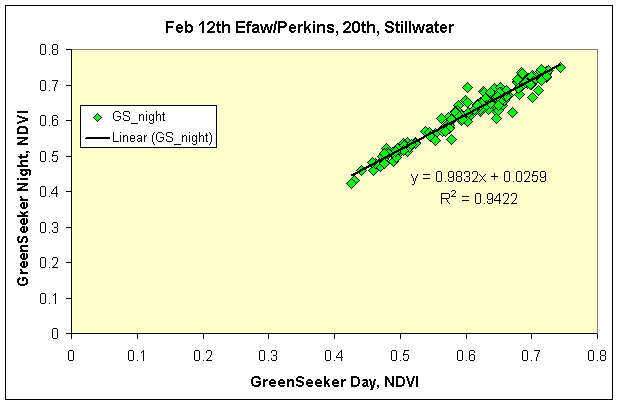

The graph above plots NDVI readings taken from 0.4m2 plots during the day (wheat, Feekes 4 and Feekes 5) versus the same plots where NDVI readings were taken at night.

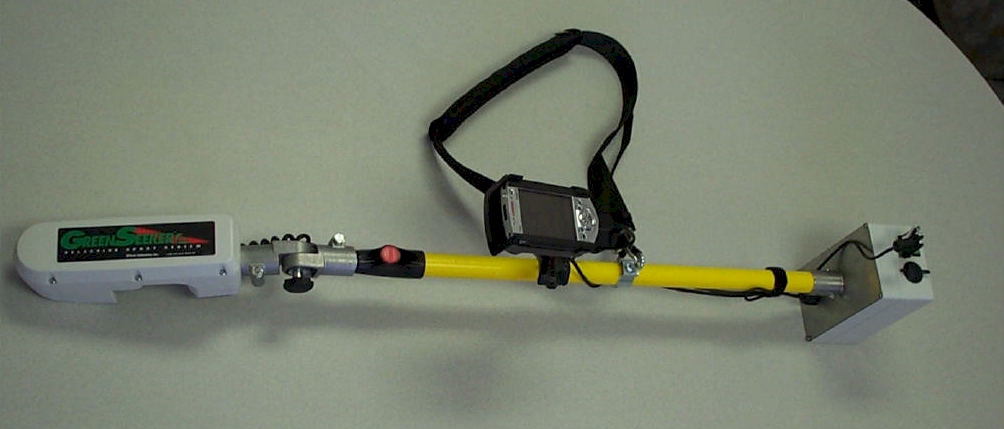

The most recent configuration of the hand-held Greenseeker Sensor currently sold by N-Tech Industries.

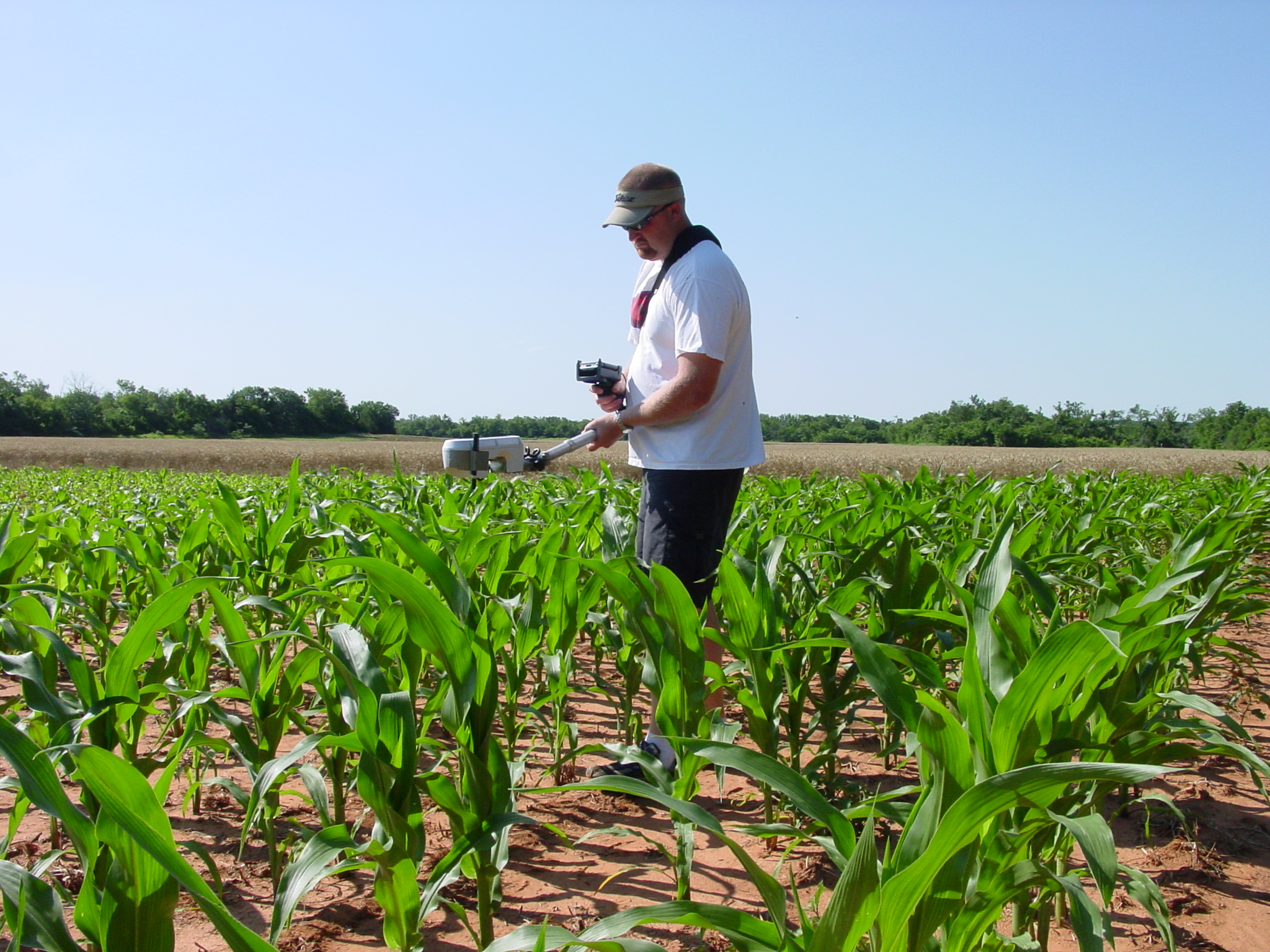

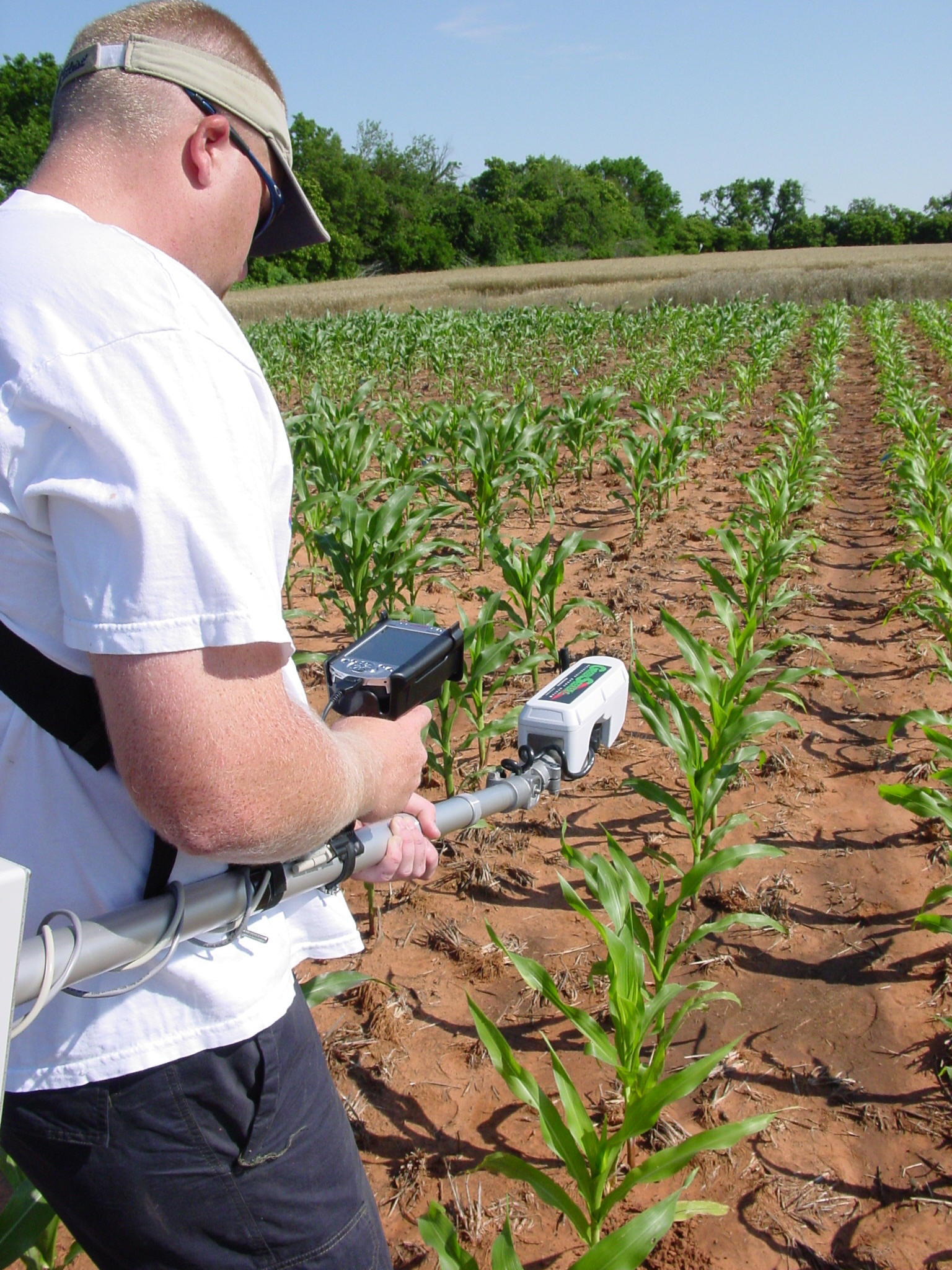

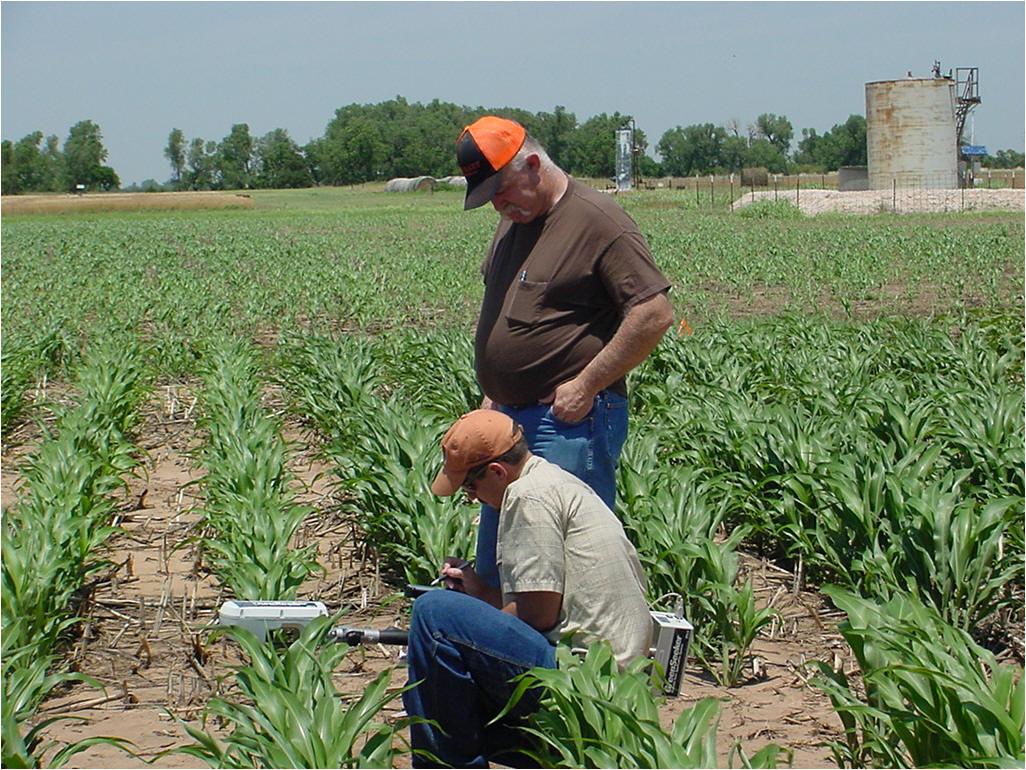

Ph.D. Candidate, Kyle Freeman collects by-plant sensor readings from corn near Stillwater, OK.

nitrogen sensors, nitrogen use efficiency, nitrogen management

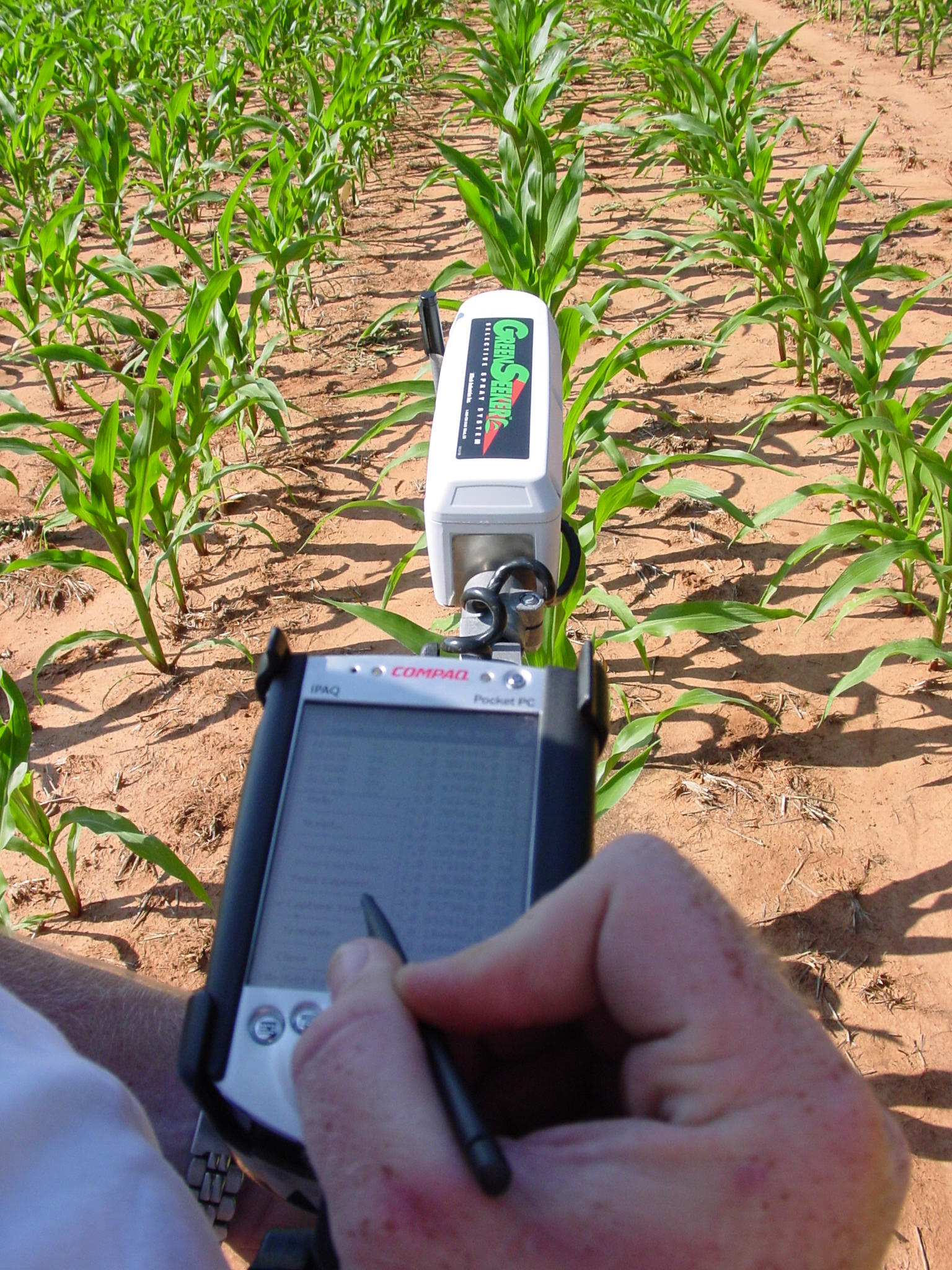

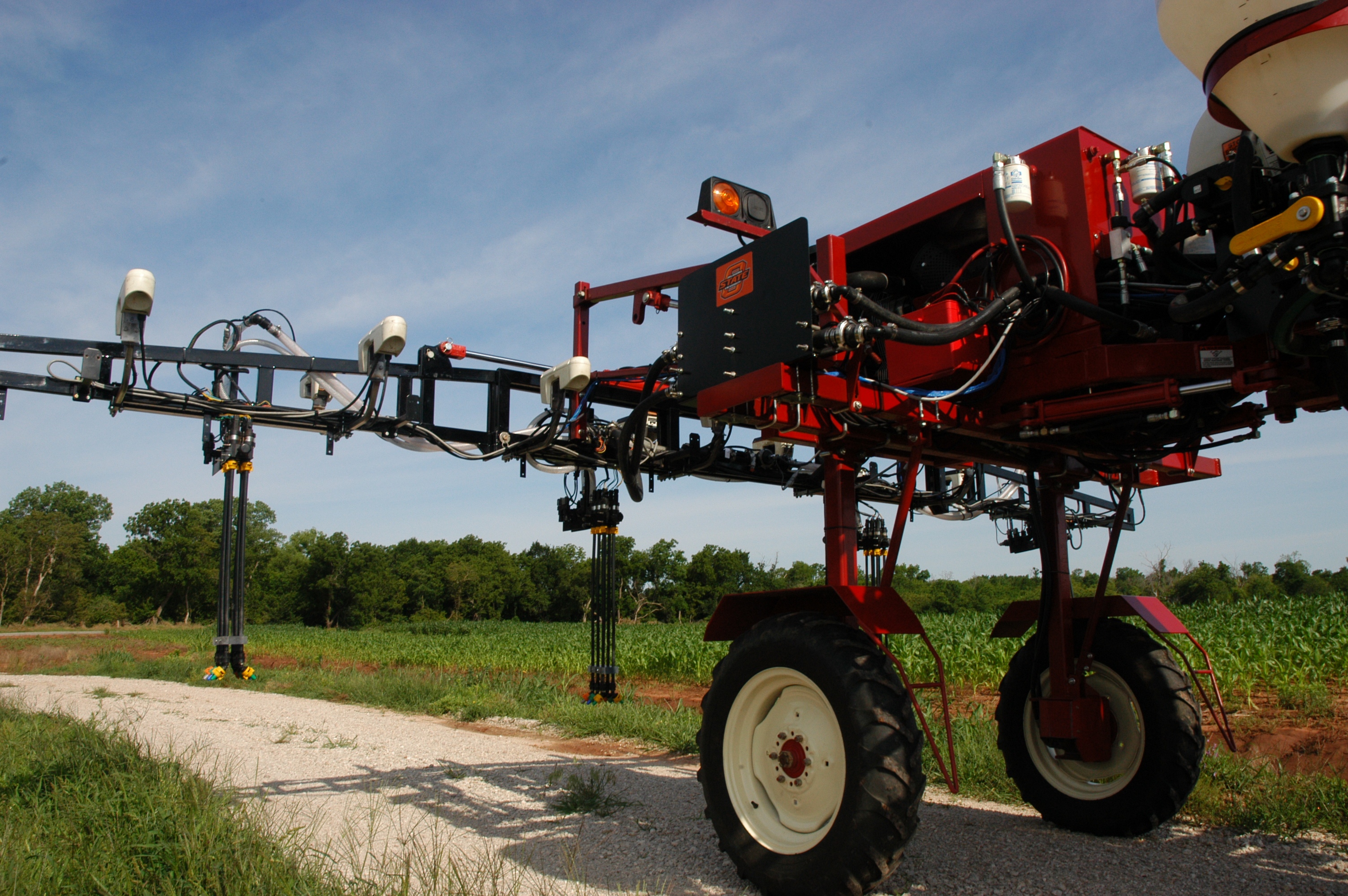

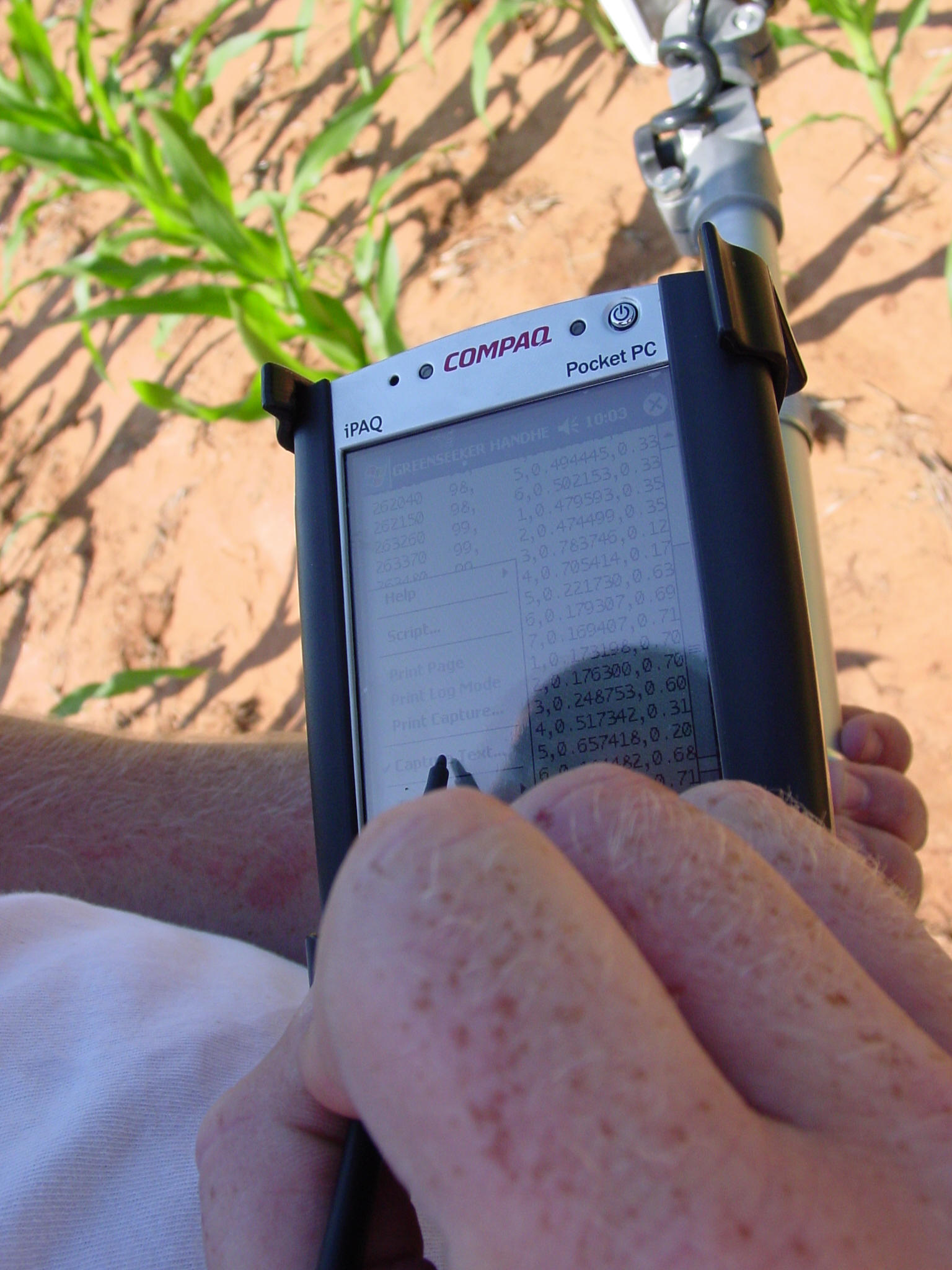

The hand-held GreenSeeker sensor is equipped with a COMPAQ iPAQ pocket PC and specific software for data collection.  The GreenSeeker hand-held is an active sensor, emitting its own light, thus being unaffected by time of day or night, cloud cover, etc.  This is the same sensor that is on-board the variable N rate applicator being developed by N-Tech Industries, capable of sensing and treating each 4 square feet in wheat in corn based on yield potential and a response index.

nitrogen sensors, nitrogen use efficiency, nitrogen management
nitrogen sensors, nitrogen use efficiency, nitrogen management
Video of the GreenSeeker Hand-held being used in corn (by-plant data collection)

Video of the GreenSeeker Hand-held being used in corn (by-plot data collection)

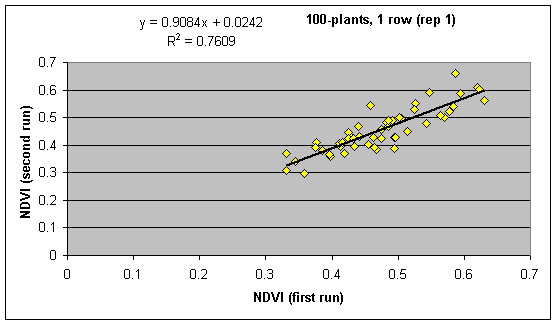

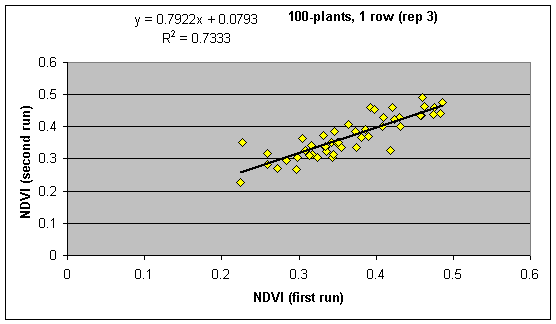

Correlation of by-corn-plant NDVI readings collected at different times from 100 consecutive plants in 1-row, with NDVI readings collected from the same 100 plants (30 minutes later) Stillwater, OK, 2002

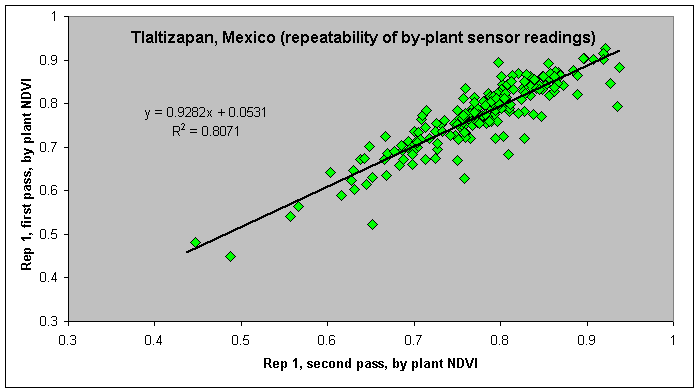

Correlation of by-corn-plant NDVI readings collected at different times from 200 consecutive plants in 1-row, with NDVI readings collected from the same 100 plants, Tlaltizapan, MX, June 2002


nitrogen sensors, nitrogen use efficiency, nitrogen management

Kyle Freeman

Kyle Freeman CIMMYT

Kyle Freeman  CIMMYT Kyle Freeman, Matthew Reynolds, CIMMYT Kyle Freeman, Monsanto greenseeker sensor use in corn Greenseeker sensor for corn and VRT
HISTORY


Comprehensive information on Nitrogen Use Efficiency for cereal crop production
